With drop prevention function (Self-lock mechanism is provided for all series.)

Gripping force of the workpieces is maintained when stopped or restarted.
The workpieces can be removed with manual override.

Energy-saving product

Power consumption reduced by self-lock mechanism.

Compact body sizes and long stroke variations

Gripping force equivalent to the widely used air grippers is available.

With gripping check function

Identify workpieces with different dimensions/detect mounting and removal of the workpieces.

Possible to set position, speed and force. (64 points)

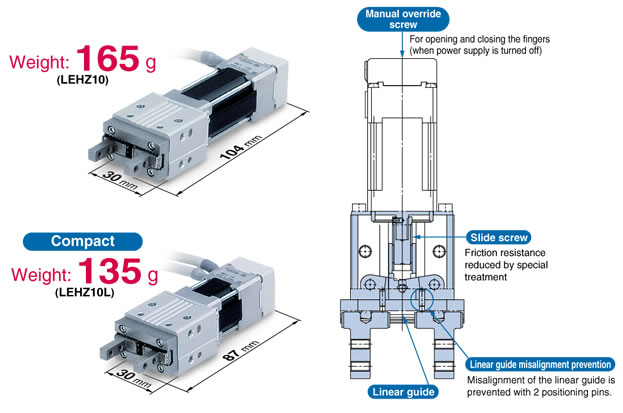

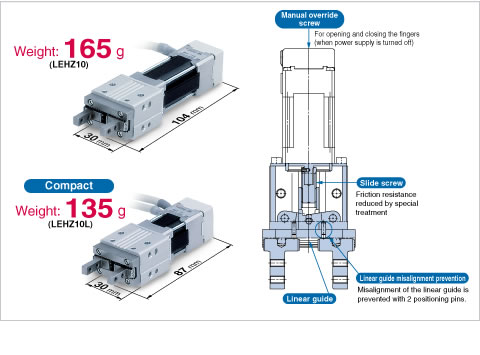

|Z Type (2 Fingers) Series LEHZ / Size: 10, 16, 20, 25, 32, 40

Compact and lightweight
Various gripping forces

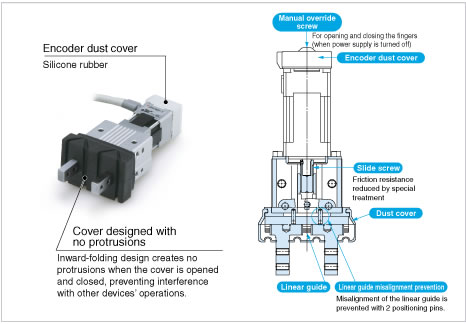

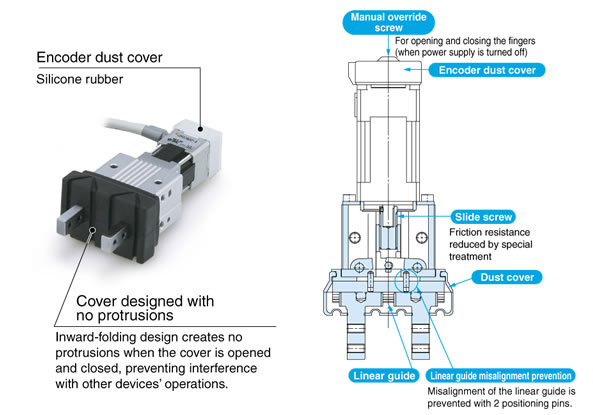

|ZJ Type (2 Fingers) Series LEHZJ / Size: 10, 16, 20, 25

Sealed-construction dust cover (Equivalent to IP50)

• Prevents machining chips, dust, etc., from getting inside
• Prevents spattering of grease, etc.

3 types of cover material

• Chloroprene rubber (black): Standard
• Fluororubber (black): Option
• Silicone rubber (white): Option

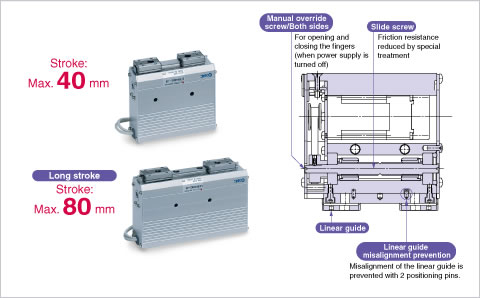

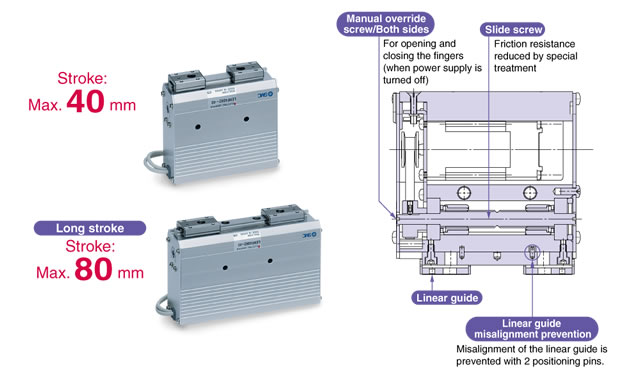

|F Type (2 Fingers) Series LEHF / Size: 10, 20, 32, 40

Can hold various types of workpieces with a long stroke.

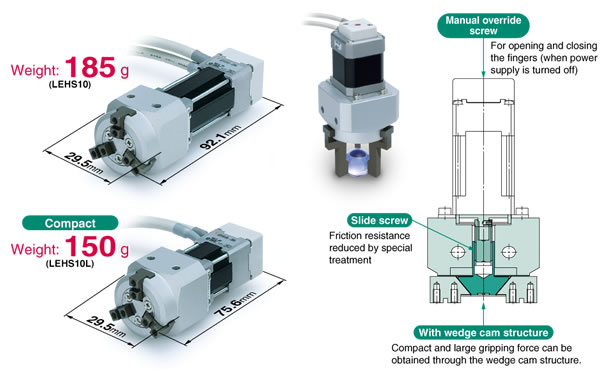

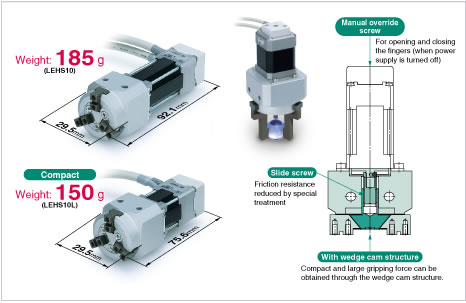

|S Type (3 Fingers) 　Series LEHS / Size: 10, 20, 32, 40

Can hold round workpieces.

|Application Examples

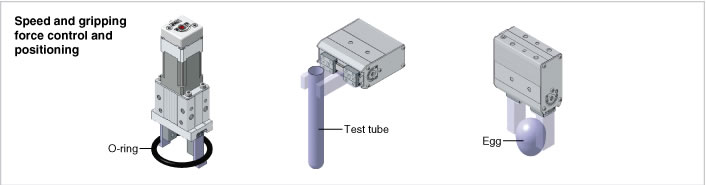

Gripping of components that are easily deformed or damaged

Alignment and selection
Gripping in a narrow space of
randomly lined parts

Gripping in a narrow space

Soft touch/High frequency

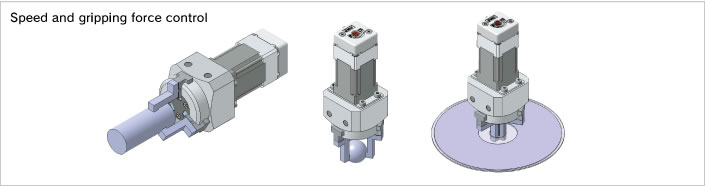

Gripping of cylindrical and spherical parts
