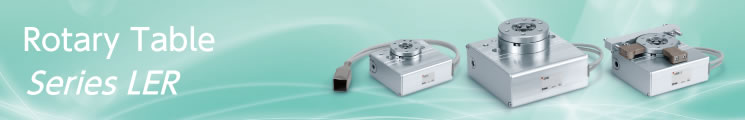

|Rotary Table　Series LER

Shock-less/High speed actuation

Max. speed: 420°/sec (7.33 rad/sec)
Max. acceleration/deceleration: 3,000°/sec²
(52.36 rad/sec²)

Positioning repeatability: ± 0.05°

Repeatability at the end: ± 0.01°
(Pushing control/With external stopper)

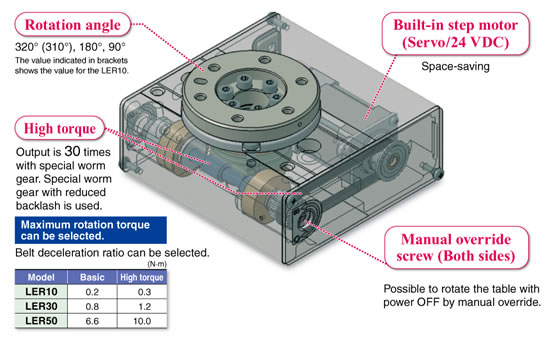

Rotation angle

320°(310°）, 180°, 90° The value indicated in brackets shows the value for the LER10.

Possible to set speed, acceleration/deceleration, and position. Max. 64 points

Energy-saving product

Automatic 50% power reduction after the table has stopped.

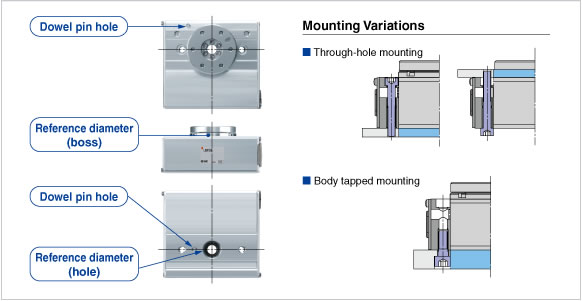

• Tolerance between table’s inside and outside diameter: H8/h8
• Dowel pin hole
• Hollow shaft axis

Accommodates wiring and piping of workpieces.

Repeatability at the end: ±0.01°

|Application Examples

Rotation transfer after gripping in combination with a gripper

Vertical transfer: No change in speed due to load fluctuation

|Continuous Rotation Specification

Rotation angle:360°
